5l Travel Oxygen Concentrator Backpack Blue Portable For Home And Travel

Product Details:
Place of Origin: CHINA
Brand Name: KAIYU
Certification: CE/ISO
Model Number: KY-1D
Payment & Shipping Terms:
Minimum Order Quantity: English Neutral Version: MOQ 10PC / OEM: MOQ 100PCS
Price: USD310/PC - USD400/PC
Packaging Details: 1PC/CTN
Delivery Time: 30-45days
Payment Terms: L/C, T/T
Supply Ability: 500PCS per Day

Detail Information

Color: Blue Or Yellow Oxygen Flow: 1-5 LPM
Warranty: 1 Year Instrument Classification: Class II
Power Supply: Battery, Plug In Concentration: 93% To 40% (±3%)
High Light:

5l Travel Oxygen Concentrator

,

backpack Travel Oxygen Concentrator

,

blue portable oxygen concentrator for home and travel

Product Description

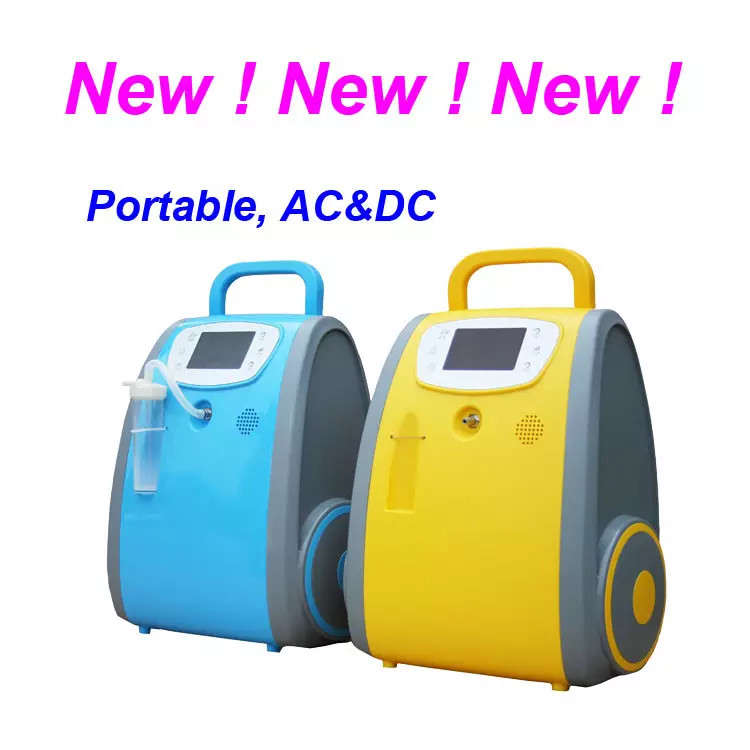

Travel Oxygen Concentrator
KY-1D Health Care Backpack Trolley Car Adaptor Portable 5 Liter Oxygen Concentrator



KY-1D portable oxygen concentrator, is an easy carriable oxygen concentrator. It is mainly developed for travel users.
KY-1D is battery-in, rechargeable, oxygen purity display, large LED screen, 3 in 1 (O2, nebulizer, Anion), power capacity display and timer.
There are one humidifier, one carry bag, one car charger, AC power cord and hidden handle.
KY-1D has E-touch panel, every function is control by fingertip.
KY-1D has no floating flow meter, to avoid gravity element.


Specification



5l Travel Oxygen Concentrator Backpack Blue Portable For Home And Travel 0

Machine Parts
Name: Multi-funtional panel

O2: click will run the machine on
Anion: click will turn on the anion device
Nebulizer: click will turn on the nebulizer
Time: click will set up the run hours
Flow: Adjust the flow rate between 1, 3, 5L/min



Name: LED light Display

When turn on the panel, the related function LED will be activated and show the status. Like the right picture



Name: Master Board
highly Integrated control, made in Europe



Name: Oxygen Sensor

Ulstrasonic type, more sensitive, made in USA



Name: Solenoid Valve

Made by alloy metal, more reliable

5l Travel Oxygen Concentrator Backpack Blue Portable For Home And Travel 1

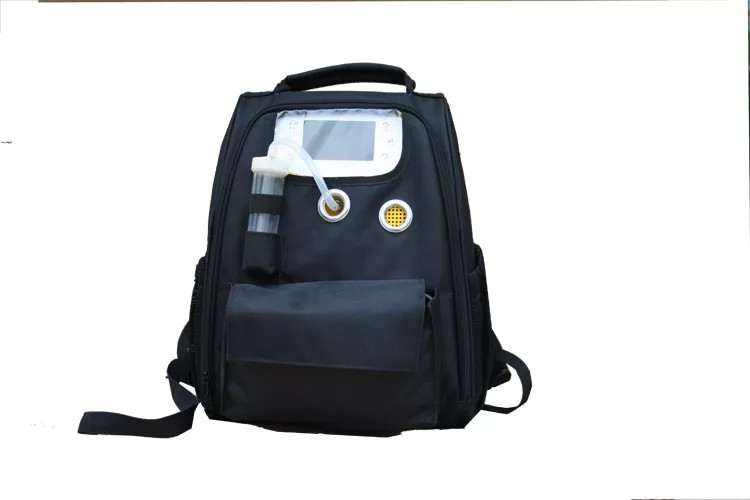

Name: Carry bag

With handle and back belt, both can be taken by hand or shoulder

5l Travel Oxygen Concentrator Backpack Blue Portable For Home And Travel 2

Name: Zeolite Molecular Sieve

Made by lithium molecular sieve, more efficient and reliable, made in USA

5l Travel Oxygen Concentrator Backpack Blue Portable For Home And Travel 3

Name: Oil Free Piston Compressor

Use the most relible compressor in China
Offer 5 years warranty.



Three power suppliers

Used in cars, uesd with an rechargeable battery, used with plug

Technical Data
Flow Range 0-5L
Input Voltage 110W while charging, 90W while not charging
Oxygen Purity 40%-90% adjustable, 5L/M 40%±3%, 3L/M 60%±3%, 1L 90%±3%
DC power Input 11V to 16.8V DC 20A max; Output 14.8V DC 8A max
AC power Input 100V to 240V AC, 50/60 HZ, 1.8 A max; Output 14.8V DC 8A max
Noise ≤ 45 dB
N.W. Weight 5.4kgs
G.W. Weight 7.4kgs
Product Size 260X195X387mm
Packing Size 300X370X550mm
Operating temperature 41° to 104°F (5° to 40°C)
Storage temperature -4° to 140°F (-20° to 60°C) unit only
Lithium Ion battery 14.8V DC, 15Ah (LiIon), 2.9 lbs (1.3 kg)
Charge time is approximately

4 to 5 hours per battery from fully discharge

Oxygen Output pressure 0.05-0.07Mpa
