Hospital Home Use Portable Absorb Phlegm Unit 50hz Vacuum Suction Apparatus

Product Description

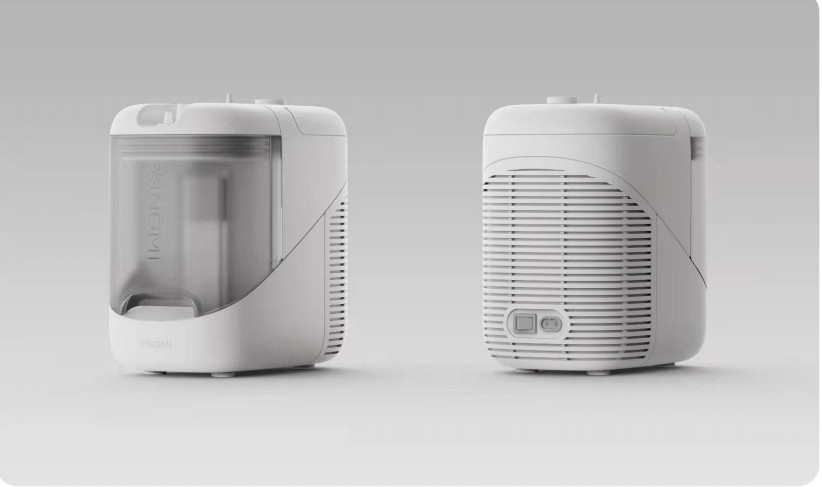

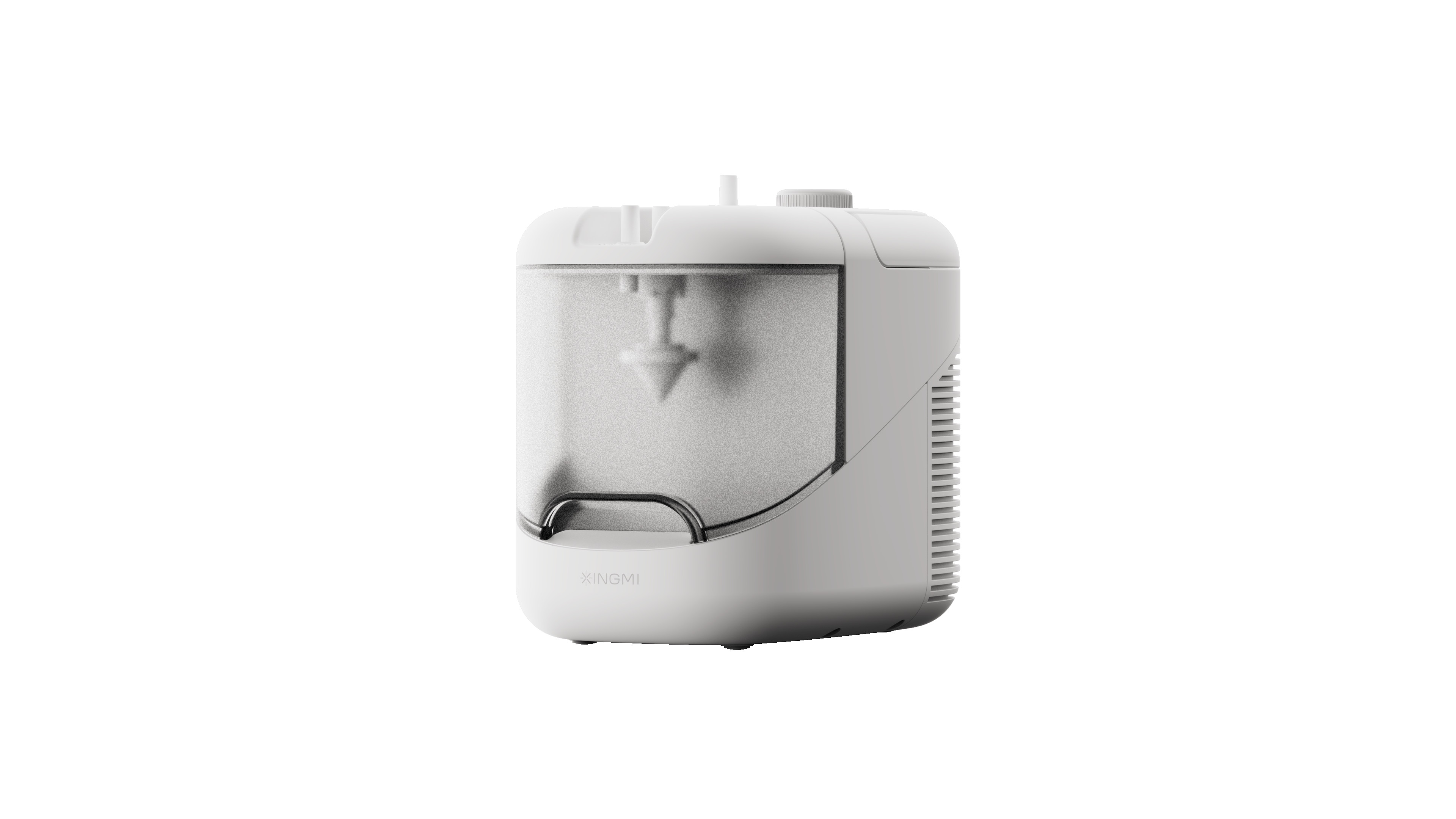

Medical Suction Apparatus

T201A 2022 New Design Portable phlegm suction unit big pump portable Hospital Home use

Features

• Operation mode classification: short run (running time is not more than 30 minutes).
• Non-AP/non-APG equipment (can not be used in the case of flammable anesthesia gas mixed with air or oxygen or nitrous oxide flammable anesthesia gas).
• Normal working conditions: ambient temperature range: +5℃~+40℃
• Relative humidity range: 30%~80%
• Atmospheric pressure range: 860hPa~1060hPa
• Note: when the storage temperature is lower than 5℃, the equipment should be placed in the normal working temperature environment for more than 4h before use.
• Transportation and storage environment restrictions environmental temperature range: -40℃~+55℃
• Relative humidity range: 10%~93%
• Atmospheric pressure range: 700hPa~1060hPa
• Note: portable sputor should be stored in non-corrosive gas and well-ventilated room, avoid dramatic shock during transportation.

Working principle:

1. Portable phlegm suction device generates negative pressure from the negative pressure pump, and generates the required negative pressure in the liquid storage bottle and the suction pipe through the adjustment of the negative pressure regulator.
2. The pressure difference between the suction part and the pipe drives the liquid/solid flow into the liquid storage bottle.
3. The liquid storage bottle or pipeline is equipped with an overflow protection device to prevent the liquid/solid from spilling into the negative pressure pump.
4. An air filter is installed between the liquid storage bottle and the negative pressure pump to prevent impurities from entering the negative pressure pump.
5. The flow rate of negative pressure suction is related to the negative pressure value, the flow resistance of equipment and pipeline and the viscosity of the object being attracted.
